SERVO-DRIVE Flex

Electrical opening support system for handle-less built-in appliances. Whether left or right opening, SERVO-DRIVE flex can be used with most built-in refrigerators, freezers and dishwashers. And delivers the convenience of handle-less opening expected from SERVO-DRIVE.

THE BENEFITS

Versatile applications - Built-in refrigerators, freezers and dishwashers can now also be elegantly concealed behind fronts in minimalist, handle-less kitchens. And they open with supreme ease with the SERVO-DRIVE flex electrical opening support system.

Intelligent functions - SERVO-DRIVE flex is a well-thought-out system which is designed to meet the demands of everyday kitchen use. Intelligent functions ensure that handle-less built-in appliances can be operated with ease.

Easy assembly and installation - Installation of SERVO-DRIVE is completed in just a few simple steps and is virtually tool free. Prior knowledge is not needed.

APPLICATIONS

The SERVO-DRIVE flex electrical opening support system allows you to implement a great range of applications. The drive unit is suitable for various types of appliances -

Combination fridge freezers - The doors of a combination fridge freezer are fitted with separate SERVO-DRIVE flex units so they can be opened individually

Freezers - For large and heavy doors, e.g. freezer doors, reliable opening is achieved with two synchronised drive units.

Refrigerators - An optional wireless switch can be used to enlarge the trigger range for the fronts of refrigerators. The door will always open with ease no matter where you touch the front.

Dishwashers - If SERVO-DRIVE flex is used with built-in dishwashers, the drive unit is mounted in the centre of the installation recess.

WHAT'S INCLUDED:

SD.11 - 2 x Drive units Z10C500A,1 x Wireless receiver Z10C5007, 1 x 3000mm synchro cable Z10K300A, 2 x Cable connecting nodes Z10V1006

SD.12 - 2 x Drive units Z10C500A, 1 x 3000mm synchro cable Z10K300A, 2 x cable connecting nodes Z10V1006, 1 x wireless switch, 1 x wireless receiver

SD.13 - 1 x Drive units Z10C500A, 1 x Wireless receiver Z10C5007, 1 x 3000mm synchro cable Z10K300A, 2 x Cable connecting nodes Z10V1006

SD.14 - 1 x Drive units Z10C500A, 1 x Mounting plate for dishwasher Z10C5005

Product Specification:

Brand	BLUM
Colour	Light Grey
Fixing Method	Screw Fixing
Fixings Included	No
Min. Installation Height	60mm Above & Below (120mm total)
Type	SERVO-DRIVE flex

Servo Drive For Appliances

SERVO-DRIVE Flex Wireless Reciever for Fridge Freezer Z10C5007

SERVO-DRIVE Flex Drive Unit Z10C500A

SERVO-DRIVE Flex Easy Order Kit SD.11

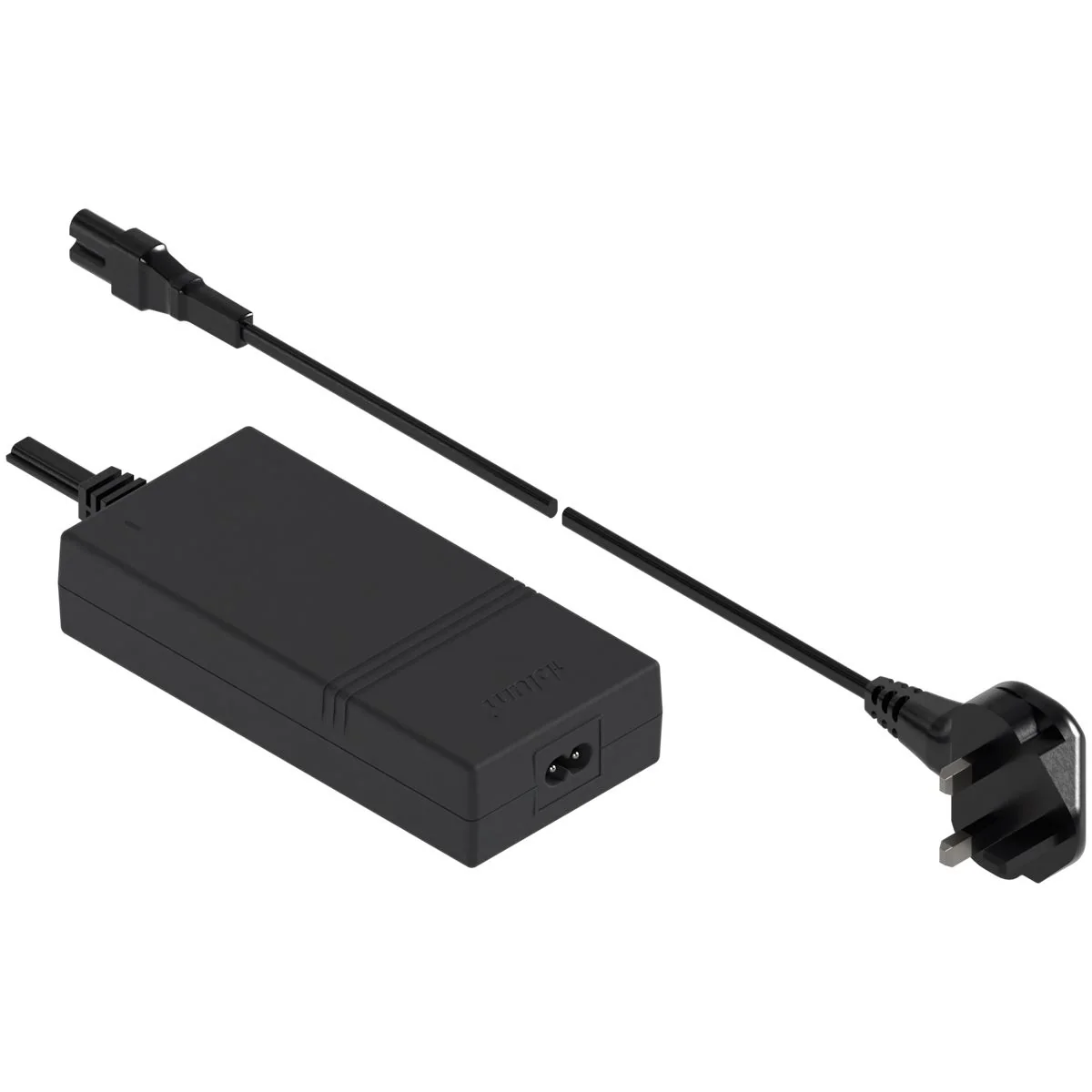

SERVO-DRIVE 72w Transformer with Mains Plug-Z10NE04BA
